1-1744427-2

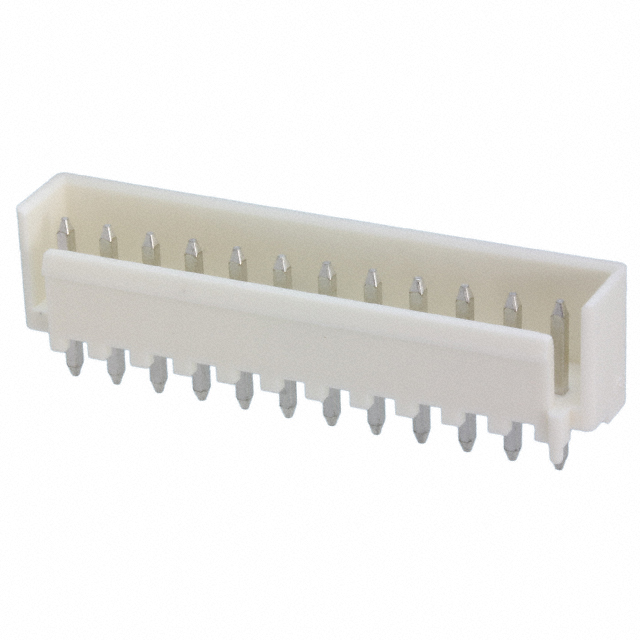

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1744427-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1744427-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1744427-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | EP HEADER ASY,SHROUDED,12 POS, G |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.429 | $0.378 | $0.356 | $0.341 | $0.326 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.296 | $0.267 | $0.237 | $0.215 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1744427-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | EP HEADER ASY,SHROUDED,12 POS, G | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91233 pcs | Data sheet | 1744427 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Economy Power |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.567" (14.40mm) |
| Other Names | A117161 | Operating Temperature | -25°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-2 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.472" (12.00mm) | Insulation Color | - |
| Ingress Protection | - | Features | Board Guide, Glow Wire Compliant |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 12 position 0.156" (3.96mm) |
| Current Rating | 7.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | 0.306" (7.77mm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
