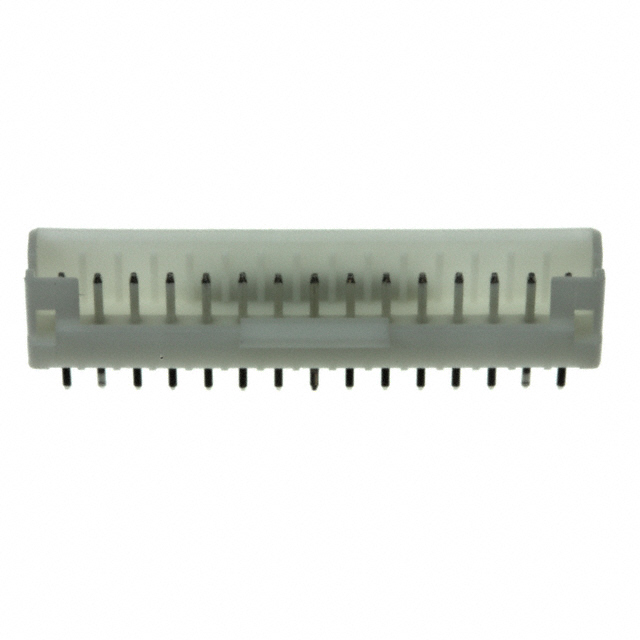

1-1735446-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1735446-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1735446-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1735446-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADR 15PS 2MM VERT W/LATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.197 | $0.185 | $0.142 | $0.123 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.102 | $0.09 | $0.083 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1735446-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADR 15PS 2MM VERT W/LATCH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 236814 pcs | Data sheet | 1735446 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | High Performance Interconnect (HPI) |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 117354465 A100109 |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 15 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.239" (6.07mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 15 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | 0.132" (3.35mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
