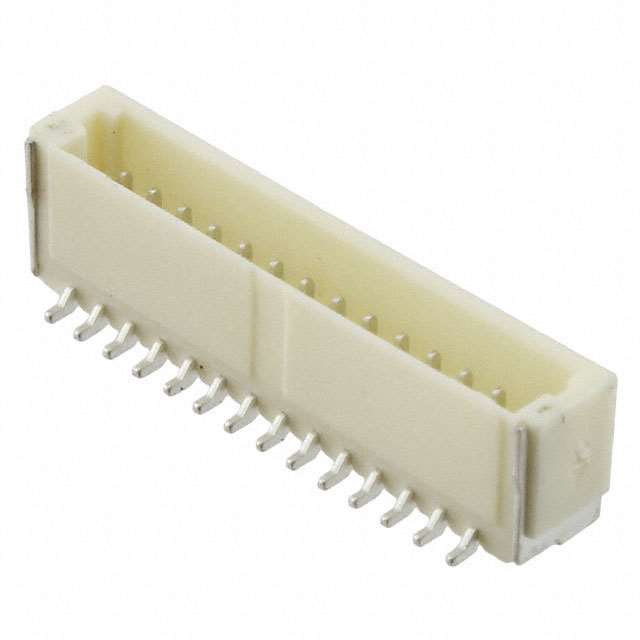

1-1734595-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1734595-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1734595-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1734595-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 14POS 1MM VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $1.086 | $1.043 | $0.869 | $0.739 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1734595-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 14POS 1MM VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47409 pcs | Data sheet | 1734595 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | High Performance Interconnect (HPI) |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | A99953CT | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.169" (4.30mm) | Insulation Color | Ivory |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | - | Detailed Description | Connector Header Surface Mount 14 position 0.039" (1.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 120.0µin (3.05µm) | Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
