1-1734592-3

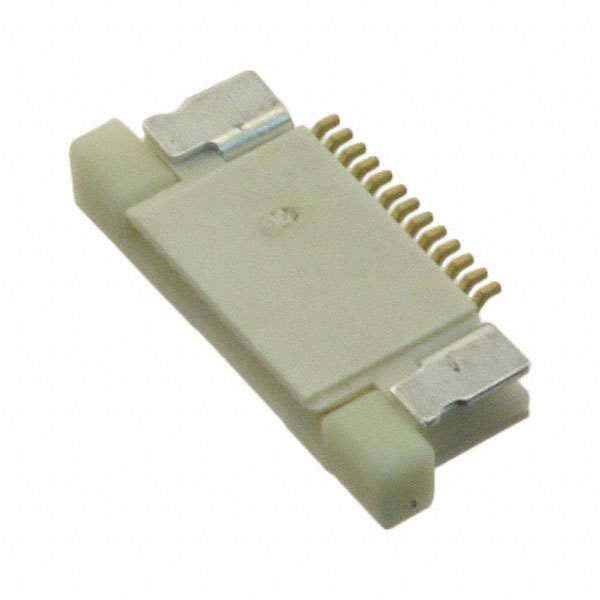

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1734592-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1734592-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1734592-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FPC BOTTOM 13POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | 14000 pcs |
|---|---|---|---|---|---|
| $0.105 | $0.099 | $0.095 | $0.089 | $0.088 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1734592-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FPC BOTTOM 13POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 246901 pcs | Data sheet | 1734592 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Series | - |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1-1734592-3-ND 117345923 A101302TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 13 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Natural |
| Height Above Board | 0.081" (2.05mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 13 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Thermoplastic |
| Actuator Color | Ivory |
