1-1634689-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1634689-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1634689-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1634689-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |

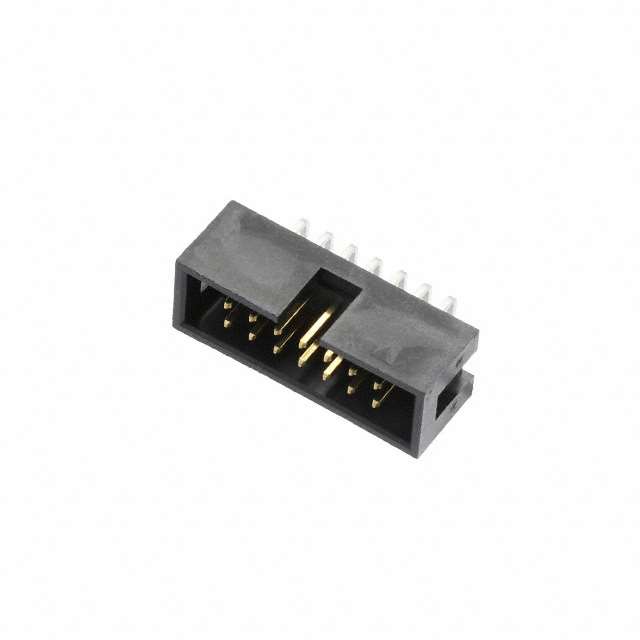

| Description | BOX HEADER RIGHT ANGLE 14 WAY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3900 pcs | ||||
|---|---|---|---|---|---|
| $0.263 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1634689-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | BOX HEADER RIGHT ANGLE 14 WAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 71747 pcs | Data sheet | 1634689 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | AMP-Latch |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | A118185 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA6T), Nylon 6T |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.228" (5.80mm) |
| Contact Finish Thickness - Post | 80.0µin (2.03µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
