1-1565994-3

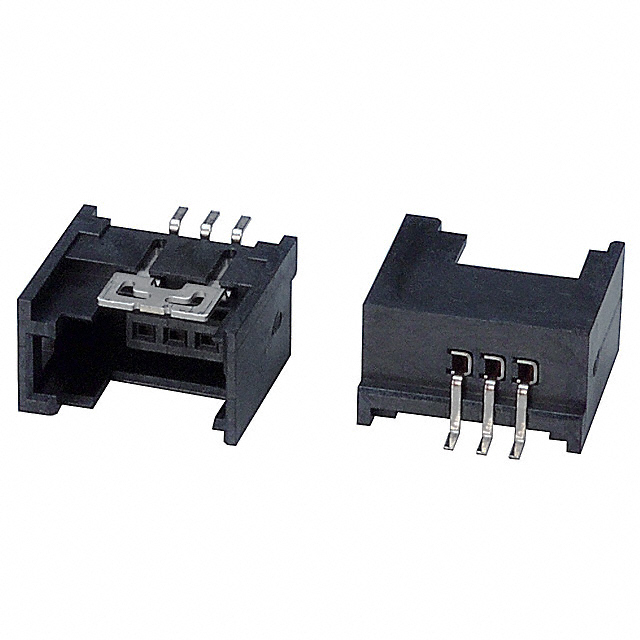

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1565994-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1565994-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1565994-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 3POS HORIZONAL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4500 pcs | ||||
|---|---|---|---|---|---|
| $0.561 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1565994-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 3POS HORIZONAL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58205 pcs | Data sheet | 1565994 |
| Category | Connectors, Interconnects | Voltage Rating | 32VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | RITS | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | A29176TR | Operating Temperature | -30°C ~ 75°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.303" (7.70mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | 3 Position Header Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
