1-1546214-4

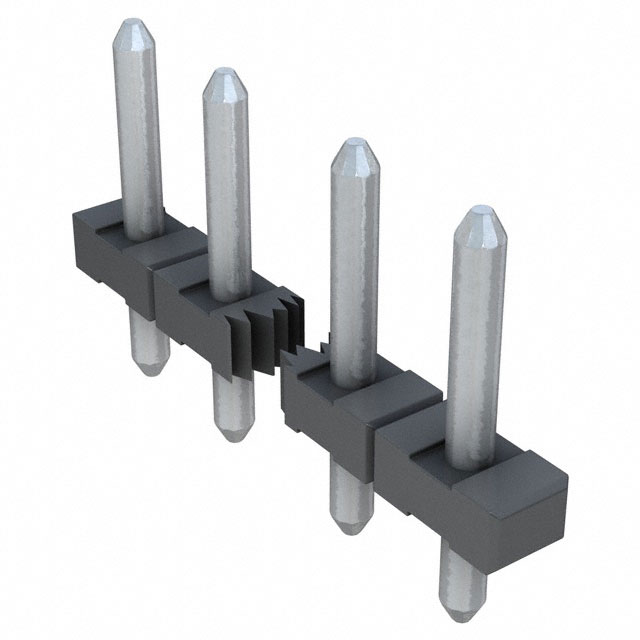

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1546214-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1546214-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1546214-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK HDR 14POS VERT 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | ||||
|---|---|---|---|---|---|
| $0.719 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1546214-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK HDR 14POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50819 pcs | Data sheet | 1546214 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Type | Header, Male Pins, Unshrouded | Torque - Screw | - |
| Termination Style | Solder | Series | Buchanan |
| Screw Size | - | Positions Per Level | 14 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Operating Temperature | -40°C ~ 110°C |
| Number of Positions | 14 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.079" (2.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | Vertical | Features | - |
| Detailed Description | 14 Position Terminal Block Header, Male Pins, Unshrouded 0.197" (5.00mm) Vertical Through Hole | Current - IEC | - |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Gray |
