1-1478021-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1478021-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1478021-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1478021-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN TNC JACK STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $1.625 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1478021-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN TNC JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22599 pcs | Data sheet | 1478021 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Clamp | Series | Greenpar |
| Packaging | Bulk | Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.2dB | Ingress Protection | - |

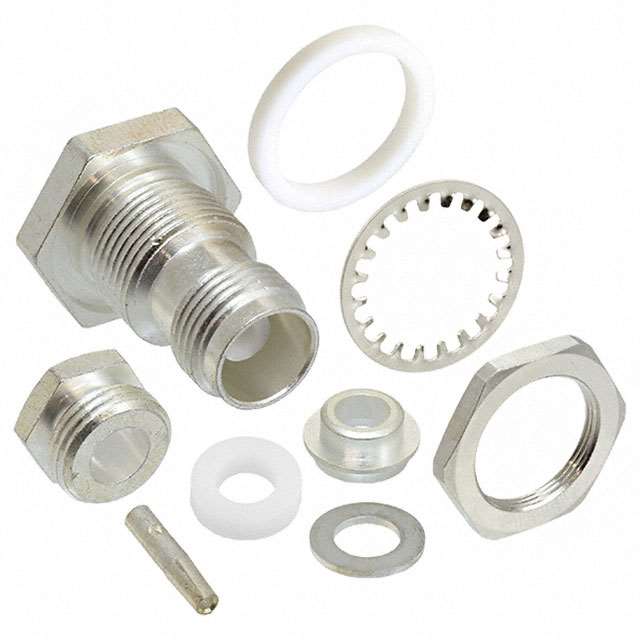

| Includes | 9 pcs - 1 Connector, 1 Clamp, 1 Contact, 2 Gaskets, 1 Lockwasher, 1 Nut, 1 Sleeve, 1 Washer | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 11GHz |
| Features | - | Fastening Type | Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | TNC Connector Jack, Female Socket 50 Ohm Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | TNC | Center Contact Plating | Silver |
| Center Contact Material | Brass | Cable Group | RG-58C, 141A |
| Body Material | Brass | Body Finish | Silver |
