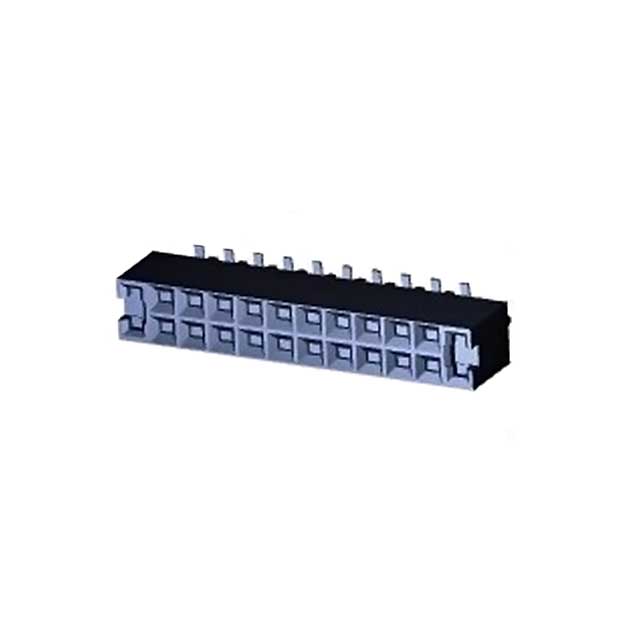

1-147103-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-147103-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-147103-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-147103-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 20POS .100 TIN SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | 1-147103-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 20POS .100 TIN SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5401 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | AMPMODU Mod IV | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Operating Temperature | -65°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.265" (6.73mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock, Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Tin-Lead |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | - |
