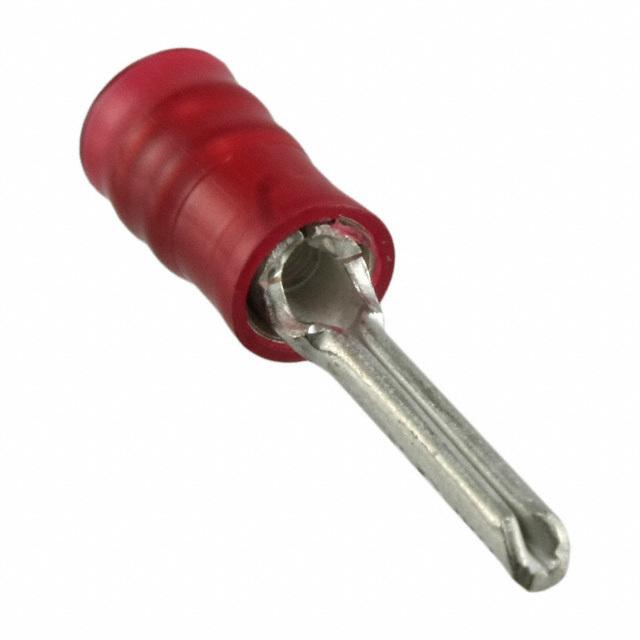

1-1377174-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1377174-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1377174-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1377174-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN WIRE PIN TERM 16-22AWG PIDG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.181 | $0.172 | $0.154 | $0.137 | $0.131 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.12 | $0.114 | $0.094 | $0.086 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1377174-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN WIRE PIN TERM 16-22AWG PIDG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 232265 pcs | Data sheet | 1377174 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG (0.2~1.6mm²) |
| Termination | Crimp | Series | PIDG |
| Pin Diameter | Circular - 0.071" (1.80mm) Dia | Packaging | Bulk |
| Other Names | 1-1377174-1-ND A134669 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 15 Weeks |
| Length - Termination | - | Length - Pin | 0.390" (9.91mm) |
| Length - Overall | 0.913" (23.20mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.142" (3.61mm) | Insulation | Insulated |
| Features | Serrated Termination | Diameter - Barrel OD | - |
| Diameter - Barrel ID | - | Detailed Description | Wire Pin Terminal Connector 16-22 AWG (0.2~1.6mm²) PIDG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
