1-1123309-2

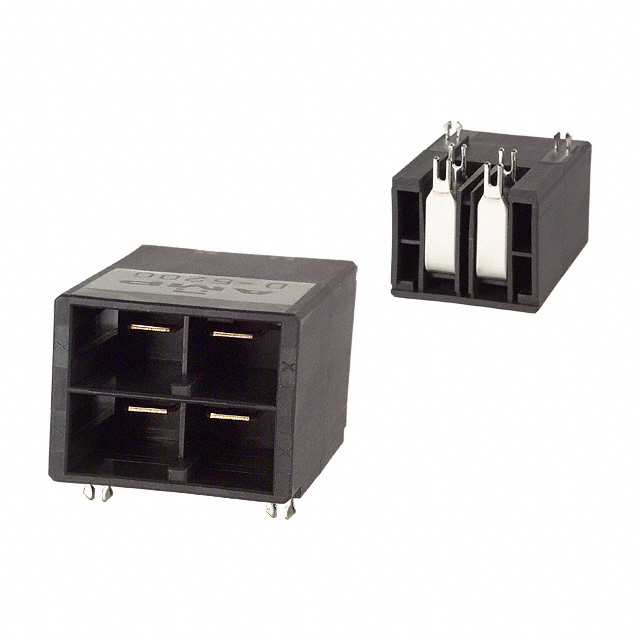

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1123309-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1123309-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1123309-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 4POS R/A KEY-XX 15AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.365 | $3.218 | $2.706 | $2.267 | $2.004 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1123309-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 4POS R/A KEY-XX 15AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19697 pcs | Data sheet | D4000, D5000 Series Catalog1123309 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 630V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-5200 |
| Row Spacing - Mating | 0.400" (10.16mm) | Pitch - Mating | 0.400" (10.16mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 111233092 A29759 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 0.947" (24.06mm) | Insulation Color | Black |
| Ingress Protection | IP20 | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.400" (10.16mm) |
| Current Rating | 30A | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial |
