1-106506-2

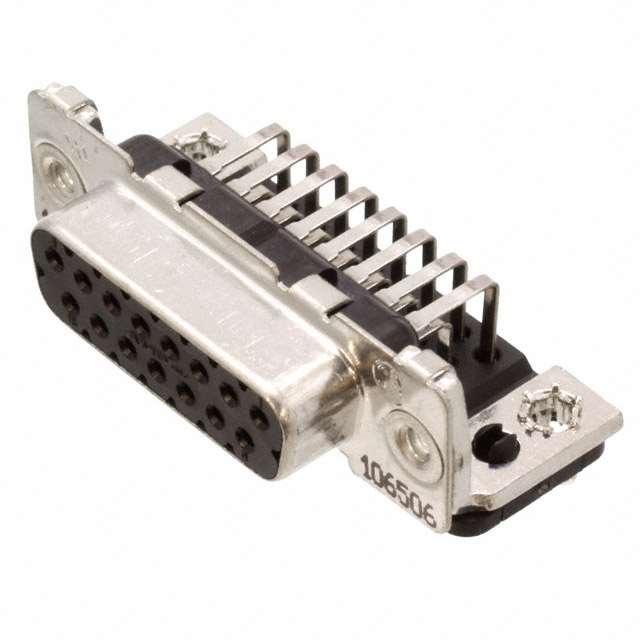

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-106506-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-106506-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-106506-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 15POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 45 pcs | 90 pcs | 135 pcs |
|---|---|---|---|---|---|
| $1.656 | $1.588 | $1.456 | $1.389 | $1.323 | |
| 270 pcs | 540 pcs | 1035 pcs | 2520 pcs | ||
| $1.158 | $1.125 | $0.959 | $0.893 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-106506-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43338 pcs | Data sheet | 106506AMPLIMITE Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HD-20 | Packaging | Tray |
| Other Names | 1-106506-2-ND 11065062 A104899 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester, Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 6A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.406" (10.30mm) |
