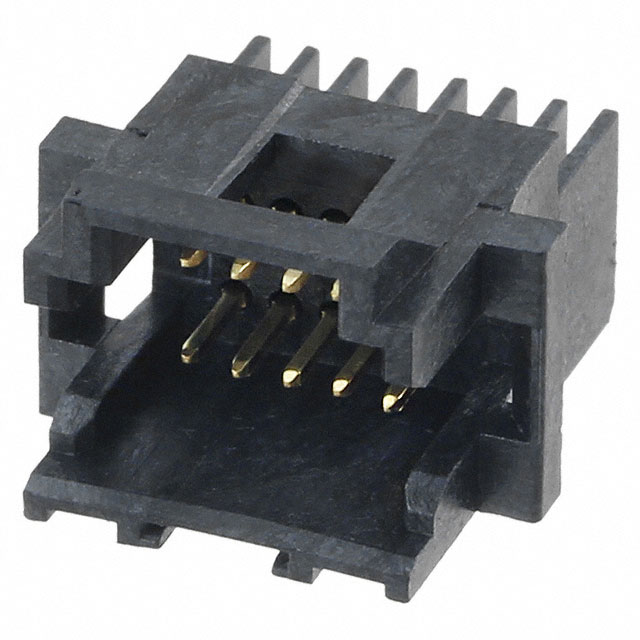

1-104477-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-104477-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-104477-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-104477-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 10 SYS50 HDR DRRA W/.145 SOLDE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1200 pcs | ||||
|---|---|---|---|---|---|
| $0.661 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-104477-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 10 SYS50 HDR DRRA W/.145 SOLDE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50423 pcs | Data sheet | 104477 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 2 Wall | Series | AMPMODU System 50 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.290" (7.37mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.050" (1.27mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.145" (3.68mm) |
| Contact Length - Mating | 0.125" (3.18mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
