1-103638-6

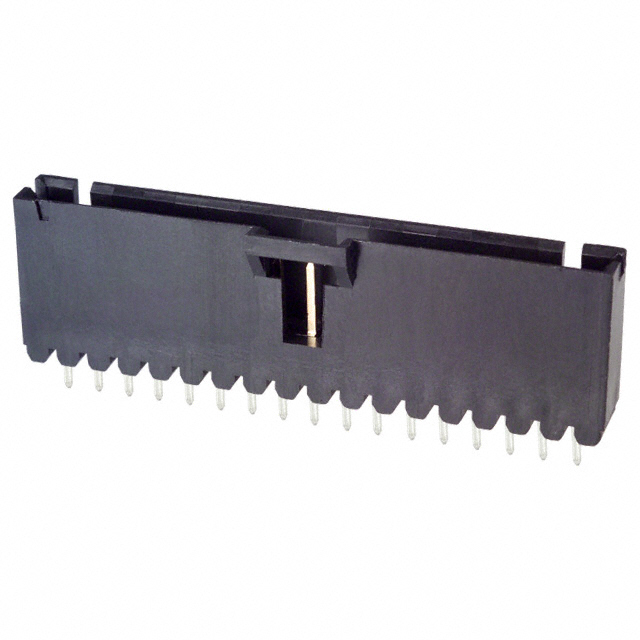

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-103638-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-103638-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-103638-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 17 MTE HDR SRST LATCH .100CL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 176 pcs | ||||
|---|---|---|---|---|---|
| $1.225 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-103638-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 17 MTE HDR SRST LATCH .100CL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31677 pcs | Data sheet | 103638 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU MTE |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 17 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.535" (13.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 17 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.130" (3.30mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
