90814-3816
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 90814-3816 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 90814-3816 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 90814-3816 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

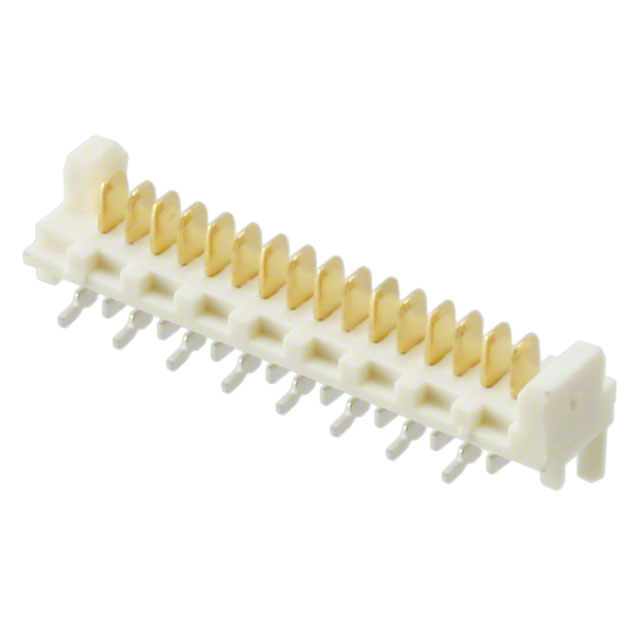

| Description | CONN HEADER 16PS 1.27MM SMD GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.51 | $0.449 | $0.387 | $0.317 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.282 | $0.247 | $0.234 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 90814-3816 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 16PS 1.27MM SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86792 pcs | Data sheet | 90814, 93405-x0,3 Pkg SpecPicoflex® Brochure90814-381699020-0011 Prod Spec90814-001 Pkg Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Picoflex PF-50 90814 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 090814-3816 090814-3816-E 0908143816 0908143816-E 90814-3816-E 908143816 908143816-E WM19290 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.161" (4.10mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 16 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Cartridge Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.085" (2.15mm) |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) | Contact Finish Thickness - Mating | 24.0µin (0.61µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Palladium-Nickel |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
