90325-3006

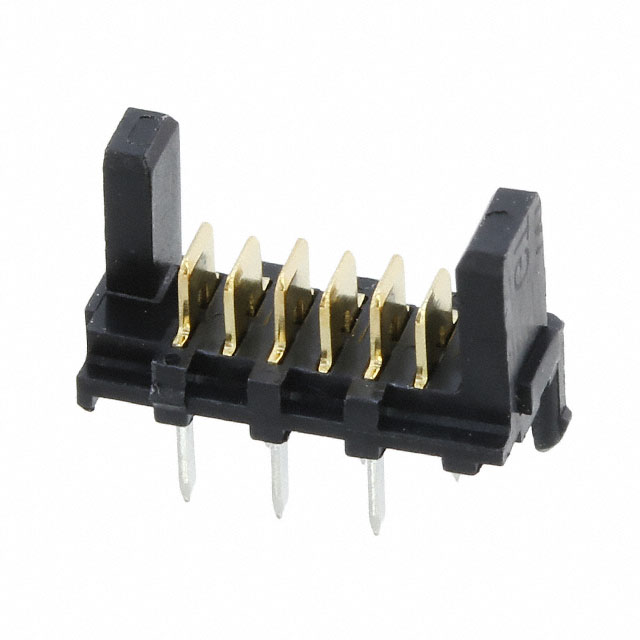

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 90325-3006 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 90325-3006 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 90325-3006 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 6POS 1.27MM GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.246 | $0.229 | $0.175 | $0.153 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.126 | $0.111 | $0.103 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 90325-3006 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 6POS 1.27MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 215906 pcs | Data sheet | Picoflex® Brochure90325-3006 Drawing99020-0011 Prod Spec90325-3006 DatasheetPicoFlex Headers Packaging Spec |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Picoflex PF-50 90325 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 0903253006 90325-3006-ND 903253006 WM12410 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.252" (6.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 6 position 0.050" (1.27mm) |
| Current Rating | 1.2A | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 24.0µin (0.61µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Palladium-Nickel |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
