90156-0147

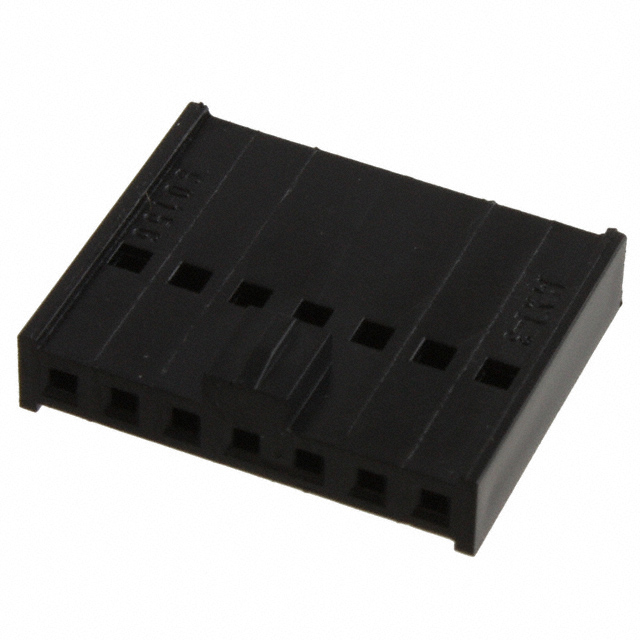

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 90156-0147 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 90156-0147 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 90156-0147 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HOUSING 7POS .100" CRIMP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.193 | $0.181 | $0.163 | $0.145 | $0.139 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.127 | $0.121 | $0.10 | $0.091 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 90156-0147 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HOUSING 7POS .100" CRIMP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 238311 pcs | Data sheet | 90156-0147 |
| Category | Connectors, Interconnects | Series | C-Grid III 90156 |
| Row Spacing | - | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 090156-0147 090156-0147-E 0901560147 0901560147-E 90156-0147-E 901560147 901560147-E WM8022 |
| Number of Rows | 1 | Number of Positions | 7 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | 7 Position Rectangular Housing Connector Receptacle Black 0.100" (2.54mm) |
| Contact Type | Female Socket | Contact Termination | Crimp |
| Connector Type | Receptacle | Color | Black |
