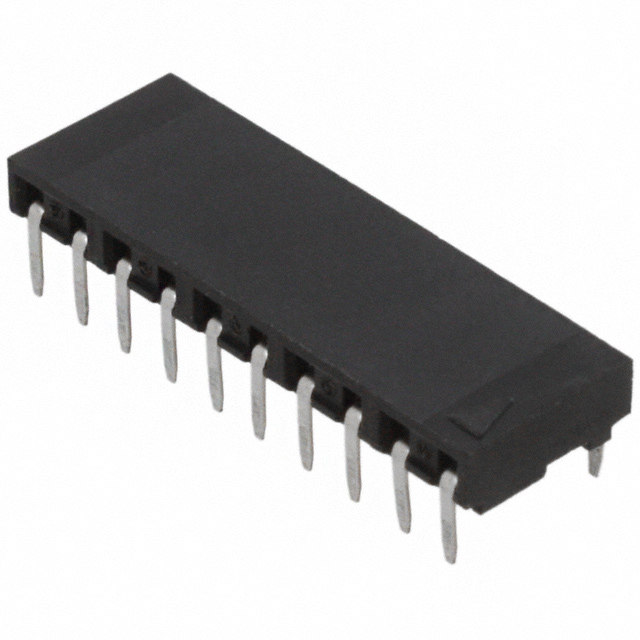

90148-1110
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 90148-1110 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 90148-1110 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 90148-1110 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT HORIZ 10POS .100 PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.141 | $1.095 | $0.912 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.776 | $0.662 | $0.593 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 90148-1110 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT HORIZ 10POS .100 PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66325 pcs | Data sheet | 90148-1110 |
| Category | Connectors, Interconnects | Voltage Rating | 350V |
| Termination | Solder | Style | Board to Board |
| Series | C-Grid 90148 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 090148-1110 090148-1110-E 0901481110 0901481110-E 90148-1110-E 90148-1110-ND 901481110 901481110-E WM6584 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.130" (3.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.114" (2.90mm) | Contact Finish Thickness - Post | 40.0µin (1.02µm) |
| Contact Finish Thickness - Mating | 40.0µin (1.02µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
