87760-3416

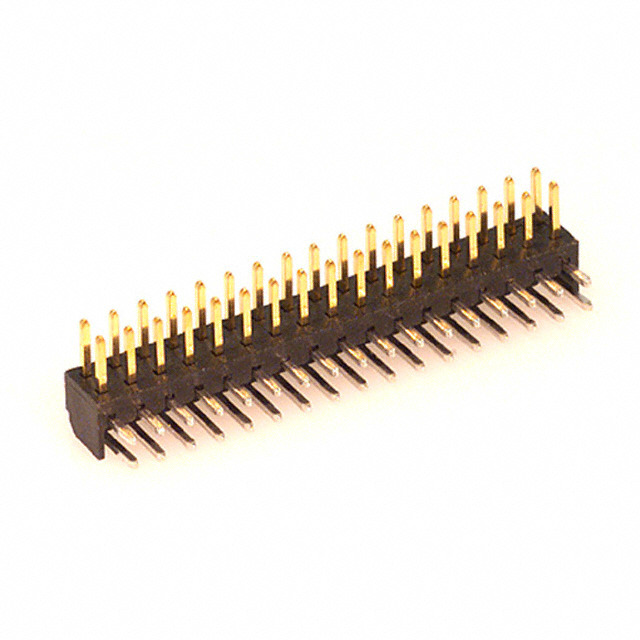

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 87760-3416 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 87760-3416 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 87760-3416 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 34POS 2MM R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.794 | $0.722 | $0.619 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.516 | $0.442 | $0.392 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 87760-3416 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 34POS 2MM R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91686 pcs | Data sheet | 87760-3416 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Milli-Grid 87760 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0877603416 87760-3416-TR150 87760-3416-TR400 877603416 WM18627 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 34 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Insulation Height | 0.169" (4.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 34 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.102" (2.60mm) | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Telecommunications |
