87437-1433

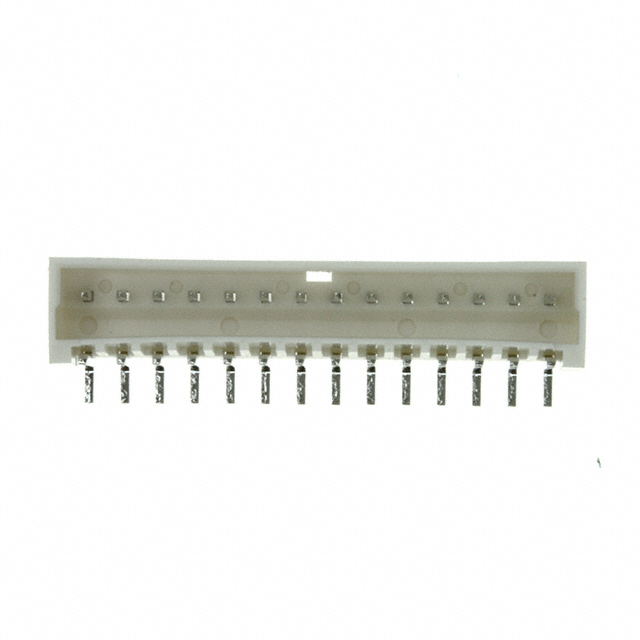

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 87437-1433 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 87437-1433 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 87437-1433 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 14POS 1.5MM VERT SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 87437-1433 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 14POS 1.5MM VERT SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4697 pcs | Data sheet | 87437-xx33 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Pico-SPOX 87437 |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 087437-1433 087437-1433-C 0874371433 0874371433-C 87437-1433-C 874371433 874371433-C WM2046TR |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.4mm | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.199" (5.05mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 14 position 0.059" (1.50mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.106" (2.70mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header |
| Applications | General Purpose, Medical |
