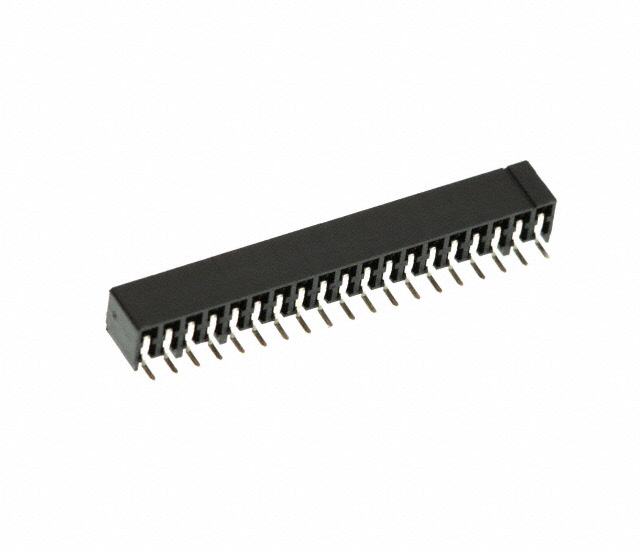

87368-3824
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 87368-3824 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 87368-3824 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 87368-3824 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 38POS 2MM SMD GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.242 | $2.152 | $1.793 | $1.524 | $1.30 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 87368-3824 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 38POS 2MM SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27286 pcs | Data sheet | 87368-zz24, zz25 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Milli-Grid 87368 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 087368-3824 087368-3824-E 0873683824 0873683824-E 87368-3824-E 87368-3824-TB14 873683824 873683824-E WM19072 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 38 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.193" (4.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | 38 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Telecommunications |
