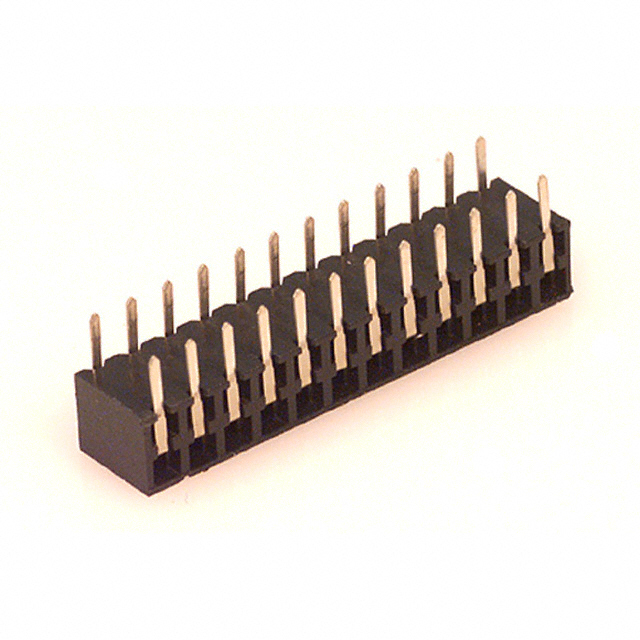

87264-2452
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 87264-2452 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 87264-2452 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 87264-2452 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 2MM 24POS SIDE ENTRY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2200 pcs | ||||
|---|---|---|---|---|---|
| $0.595 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 87264-2452 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 2MM 24POS SIDE ENTRY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61402 pcs | Data sheet | 87264-zz5z Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Milli-Grid 87264 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 087264-2452 087264-2452-E 0872642452 0872642452-E 87264-2452-E 87264-2452-TB22 872642452 872642452-E WM19044 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.157" (4.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 24 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.100" (2.54mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Telecommunications |
