85780-1005

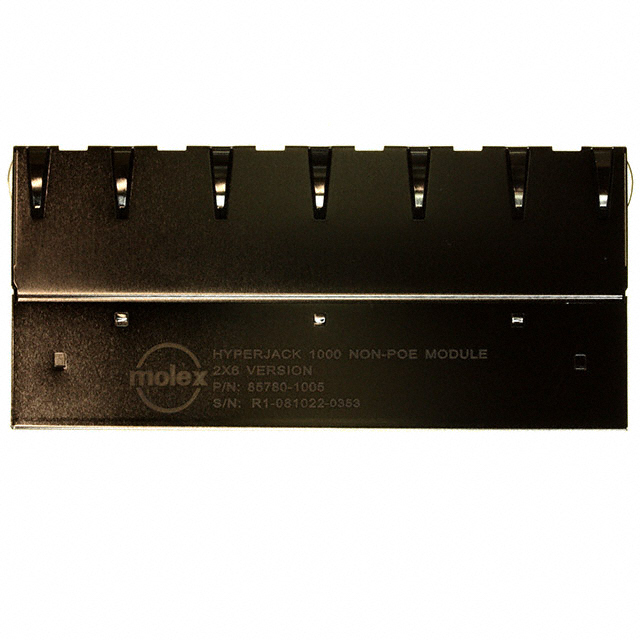

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 85780-1005 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 85780-1005 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 85780-1005 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN MAGJACK 12PORT 1000 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 85780-1005 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN MAGJACK 12PORT 1000 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4611 pcs | Data sheet | 85780-1005 |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Up and Down | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | Hyperjack 1000, 85780 |
| Packaging | Tray | Other Names | 085780-1005 085780-1005-E 0857801005 0857801005-E 85780-1005-E 857801005 857801005-E WM5460 |
| Orientation | 90° Angle (Right) | Operating Temperature | 0°C ~ 70°C |
| Number of Rows | 2 | Number of Ports | 12 |
| Number of Cores per Jack | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| LED Color | Green, Orange - Green, Orange | Housing Material | Thermoplastic |
| Height Above Board | 1.002" (25.46mm) | Features | Board Guide |
| Detailed Description | 12 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | RJ45 | Applications | 10/100/1000 Base-T, AutoMDIX |
