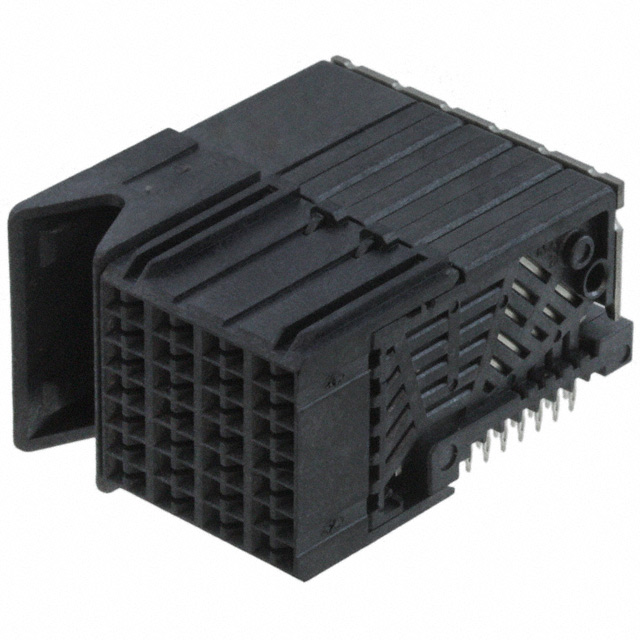

76020-3004
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 76020-3004 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 76020-3004 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 76020-3004 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RCPT MOD 56POS 7ROW R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.753 | $3.589 | $3.262 | $3.099 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.018 | $2.691 | $2.528 | $2.235 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 76020-3004 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RCPT MOD 56POS 7ROW R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17080 pcs | Data sheet | 76020-002 |
| Category | Connectors, Interconnects | Voltage Rating | 120V |
| Termination | Press-Fit | Series | GbX I-Trac 76020 |
| Pitch | - | Packaging | Tray |
| Other Names | 076020-3004 076020-3004-E 0760203004 0760203004-E 76020-3004-E 76020-3004-ND 760203004 760203004-E SD-76020-002 WM6575 |
Operating Temperature | -55°C ~ 80°C |
| Number of Rows | 7 | Number of Positions Loaded | All |
| Number of Positions | 56 | Number of Columns | 4 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | - | Contact Layout, Typical | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | Coplanar, Daughtercard | Connector Type | Receptacle, Female Sockets |
| Connector Style | I-Trac, Guide Left | Color | Black |
