71226-0425

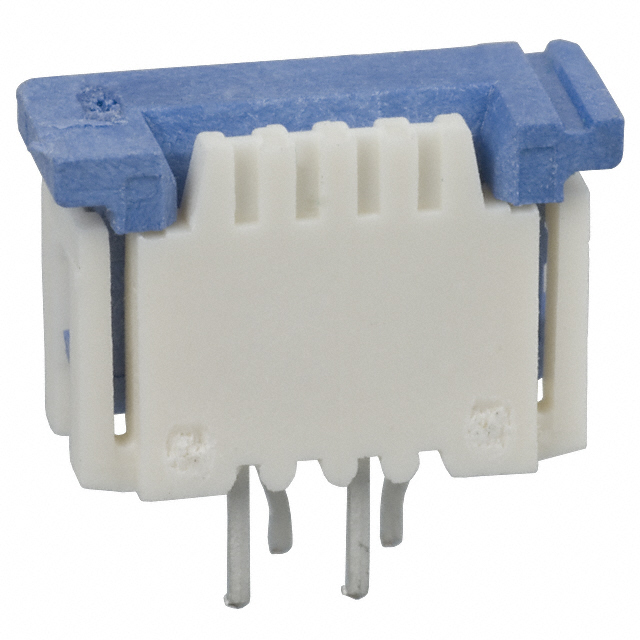

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 71226-0425 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 71226-0425 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 71226-0425 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC VERT 4POS 1.00MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 71226-0425 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC VERT 4POS 1.00MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4374 pcs | Data sheet | 71226-0425 |
| Category | Connectors, Interconnects | Voltage Rating | 125V |
| Termination | Kinked Pin | Series | 71226 |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 071226-0425 071226-0425-C 0712260425 0712260425-C 71226-0425-C 71226-0425-TR306 71226-0425-TR462 712260425 712260425-C WM5300 |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 5 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Slide Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Housing Color | Natural | Height Above Board | 0.236" (6.00mm) |
| Flat Flex Type | FFC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.30mm | Detailed Description | 4 Position FFC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole |
| Current Rating | 1A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 196.9µin (5.00µm) | Contact Finish | Tin |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | Cable End Type | Tapered |
| Actuator Material | Liquid Crystal Polymer (LCP), Glass Filled | Actuator Color | Blue |
