5600200400

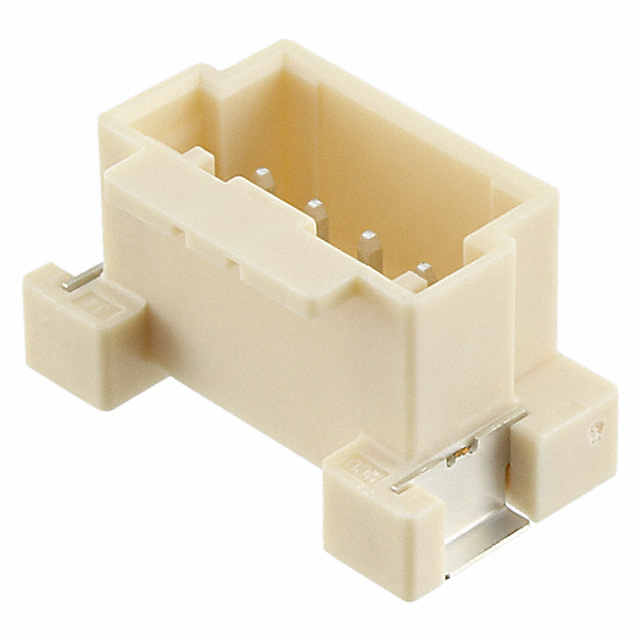

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5600200400 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5600200400 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5600200400 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 4POS 2MM VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5600200400 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 4POS 2MM VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5966 pcs | Data sheet | 5600200x00 Drawing5600200x00 Tape SpecDuraClick Connectors2.0mm Wire-Board Conn Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DuraClik 560020 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 05600200400 560020-0400 WM9768TR |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | 9.3mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.315" (8.00mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Surface Mount 4 position 0.079" (2.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | Automotive, Industrial |
