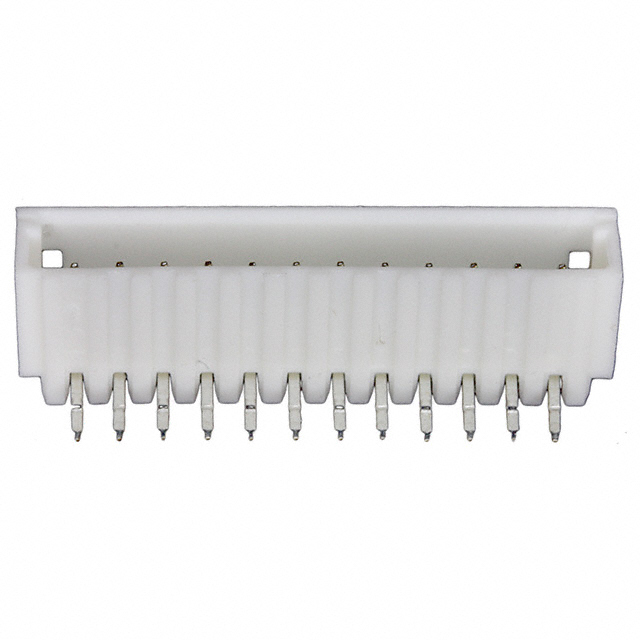

53325-1260
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 53325-1260 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 53325-1260 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 53325-1260 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 2MM 12POS R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.625 | $1.56 | $1.30 | $1.105 | $0.943 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 53325-1260 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 2MM 12POS R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32718 pcs | Data sheet | 53325-xx6x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mi II 53325 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 533251260 WM8336 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.191" (4.85mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.136" (3.45mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
