53324-1060

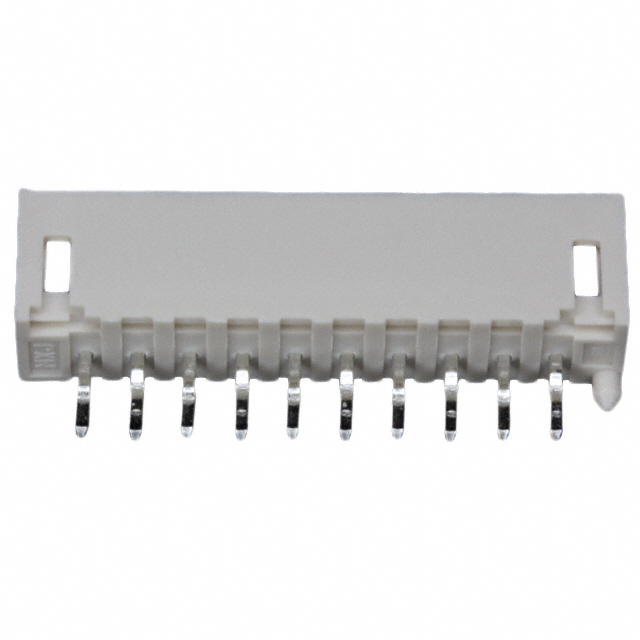

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 53324-1060 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 53324-1060 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 53324-1060 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 2MM 10POS PCB TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $5.872 | $5.453 | $4.195 | $3.831 | $3.636 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 53324-1060 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 2MM 10POS PCB TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10415 pcs | Data sheet | 53324-xx6x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mi II 53324 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 533241060 WM8320 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.236" (6.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 10 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.136" (3.45mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
