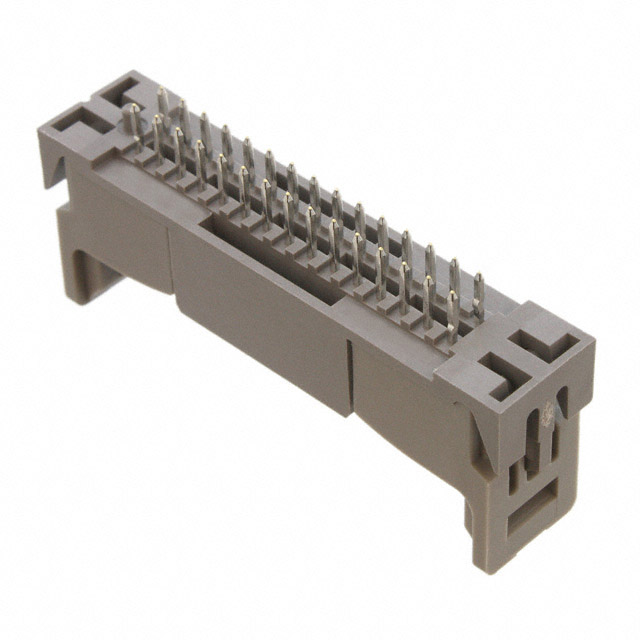

53314-3065
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 53314-3065 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 53314-3065 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 53314-3065 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 30POS 2MM W/EJECT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $4.45 | $4.044 | $3.438 | $2.932 | $2.689 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 53314-3065 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 30POS 2MM W/EJECT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12990 pcs | Data sheet | 53314-xx15 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mi II 53314 |
| Row Spacing - Mating | 0.098" (2.50mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 53314-3065-ND 533143065 WM6483 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | - | Insulation Color | Gray |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 30 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 40.0µin (1.02µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
