53261-1490

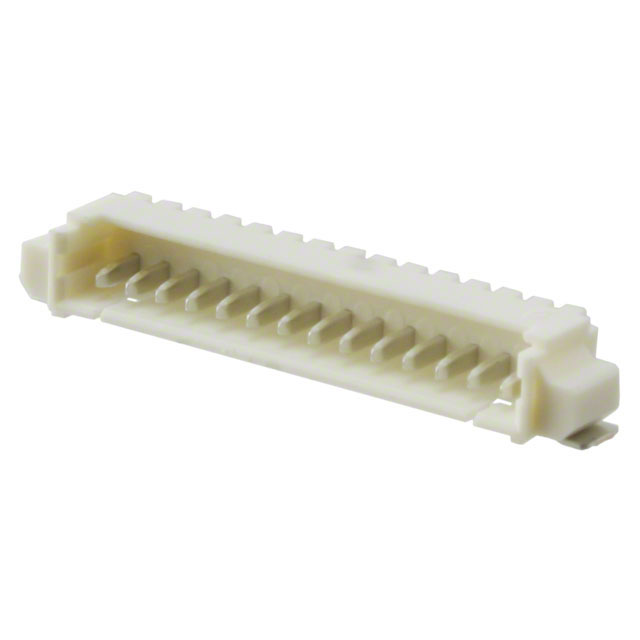

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 53261-1490 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 53261-1490 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 53261-1490 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 14POS 1.25MM R/A SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 53261-1490 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 14POS 1.25MM R/A SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5984 pcs | Data sheet | 53261-149051021-0024 Prod Spec53261-002 Pkg Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PicoBlade 53261 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | 532-61-1490-P 53261-1490-P WM17012 WM17012-ND WM17012CT |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6 | Insulation Height | 0.134" (3.40mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount, Right Angle 14 position 0.049" (1.25mm) | Current Rating | - |
| Contact Type | Male Blade | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header |
| Applications | Automotive, General Purpose, Industrial, Medical |
