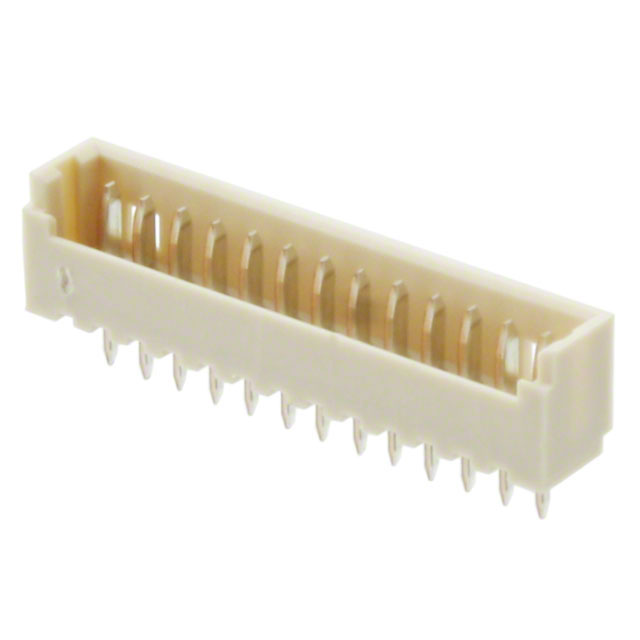

53047-1310
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 53047-1310 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 53047-1310 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 53047-1310 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 13POS 1.25MM STR TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.489 | $0.431 | $0.372 | $0.304 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.271 | $0.237 | $0.225 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 53047-1310 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 13POS 1.25MM STR TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99125 pcs | Data sheet | 53047-1310 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PicoBlade 53047 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 053047-1310 053047-1310-C 0530471310 0530471310-C 530-47-1310-P 53047-1310-C 53047-1310-CL100 530471310 530471310-C WM17003 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 13 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.165" (4.20mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 13 position 0.049" (1.25mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.091" (2.30mm) | Contact Length - Mating | 0.089" (2.25mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 35.4µin (0.90µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
