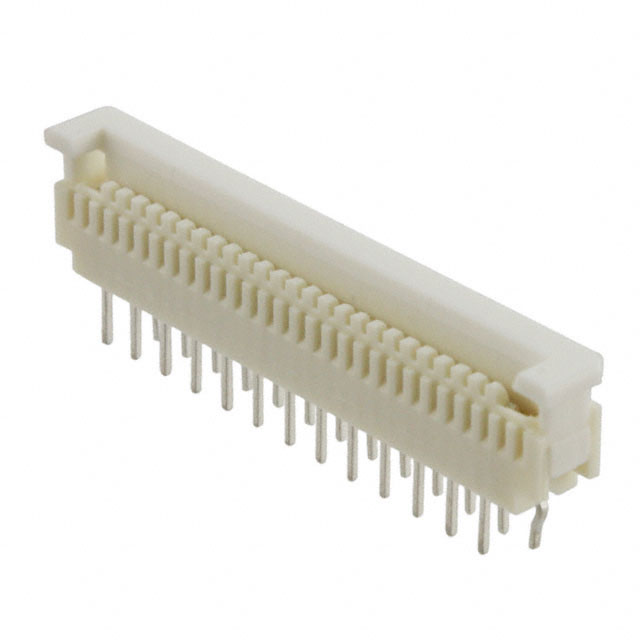

52030-2629
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 52030-2629 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 52030-2629 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 52030-2629 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC VERT 26POS 1.00MM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.962 | $0.872 | $0.819 | $0.783 | $0.747 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.676 | $0.623 | $0.534 | $0.498 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 52030-2629 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC VERT 26POS 1.00MM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60779 pcs | Data sheet | 52030-2629 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin | Series | 52030 |
| Pitch | 0.039" (1.00mm) | Packaging | Tray |
| Other Names | 052030-2629 052030-2629-C 0520302629 0520302629-C 52030-2629-C 520302629 520302629-C WM1187 |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Housing Color | - |
| Height Above Board | 0.205" (5.20mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 26 Position FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Through Hole | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin Bismuth | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Tapered | Actuator Material | Polyester |
| Actuator Color | - |
