5055681071

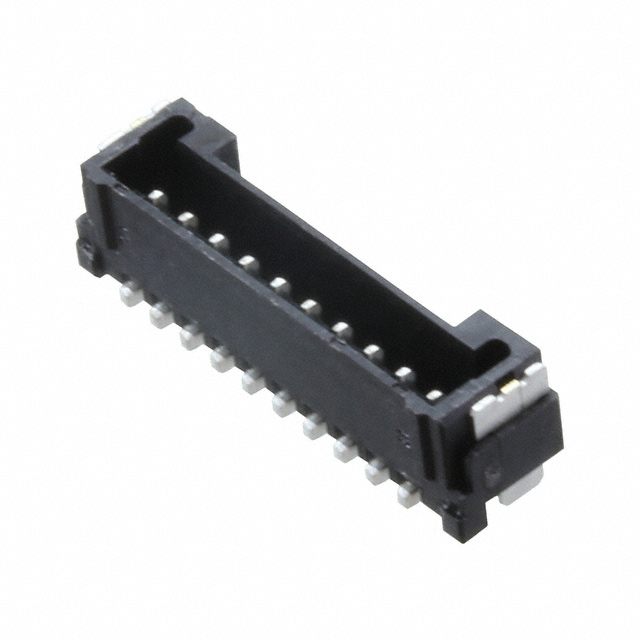

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5055681071 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5055681071 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5055681071 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 1.25WB SINGLE ST ASSY 10CKT EMBP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.323 | $0.285 | $0.245 | $0.201 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5055681071 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 1.25WB SINGLE ST ASSY 10CKT EMBP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 118576 pcs | Data sheet | 505565-002 Appl Spec5055681071 Drawing5055650000 Prod Spec5055689200 Pkg Spec |
| Category | Connectors, Interconnects | Voltage Rating | 50VAC/DC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Lock PLUS 505568 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | WM17124CT | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 7.4mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.165" (4.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 10 position 0.049" (1.25mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial |
