5054050470

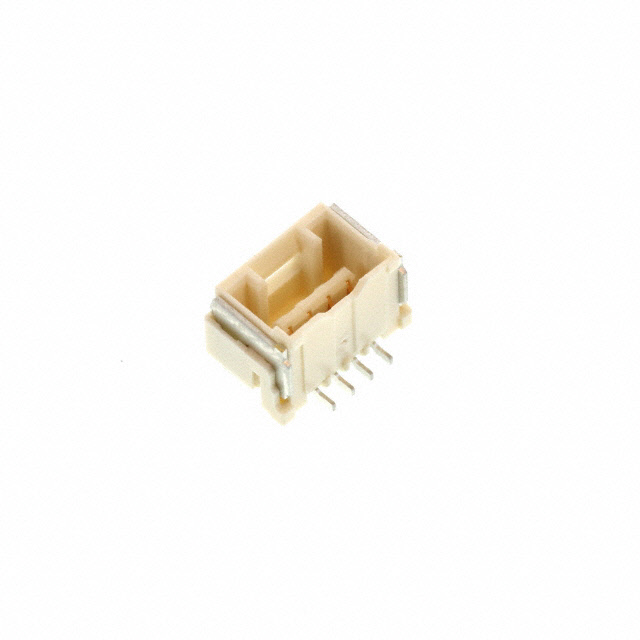

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5054050470 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5054050470 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5054050470 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 1.5 WB SINGLE ROW REC EMBOSSED T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.252 | $0.236 | $0.212 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.189 | $0.181 | $0.165 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5054050470 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 1.5 WB SINGLE ROW REC EMBOSSED T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 127133 pcs | Data sheet | 5054050470 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | CLIK-Mate 505405 | Row Spacing - Mating | - |
| Pitch - Mating | 0.059" (1.50mm) | Packaging | Cut Tape (CT) |
| Other Names | WM12858CT | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 22 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Resin |
| Insulation Height | 0.285" (7.25mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | 4 Position Receptacle Connector 0.059" (1.50mm) Surface Mount Gold |
| Current Rating | Varies by Wire Gauge | Contact Type | Forked |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
