5051103091

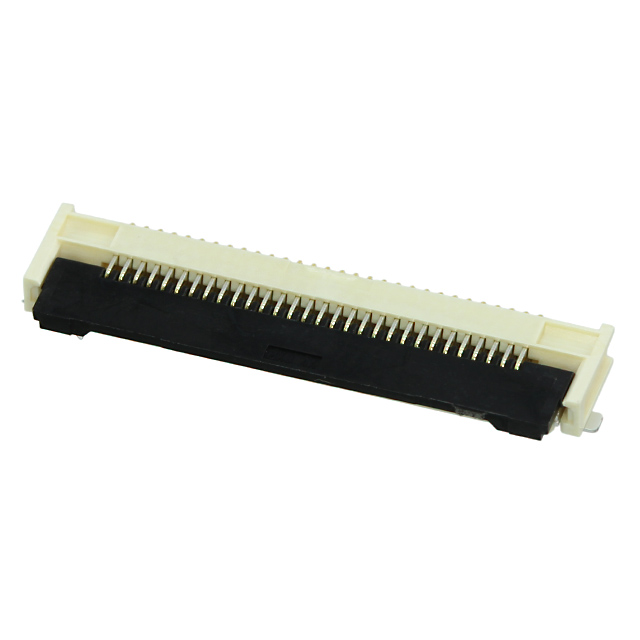

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5051103091 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5051103091 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5051103091 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC/FPC BOTTOM 30P .5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 9000 pcs | 15000 pcs | |
|---|---|---|---|---|---|
| $0.171 | $0.165 | $0.157 | $0.153 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5051103091 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC/FPC BOTTOM 30P .5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 125910 pcs | Data sheet | 505110-xx11,91 Prod SpecFFC/FPC Connectors5051103091 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 505110 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 505110-3091 5051103091-ND WM11291TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 30 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 25 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 13 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Beige |
| Height Above Board | 0.075" (1.90mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 30 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 1.97µin (0.050µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed, Tapered | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Black |
