5047543920

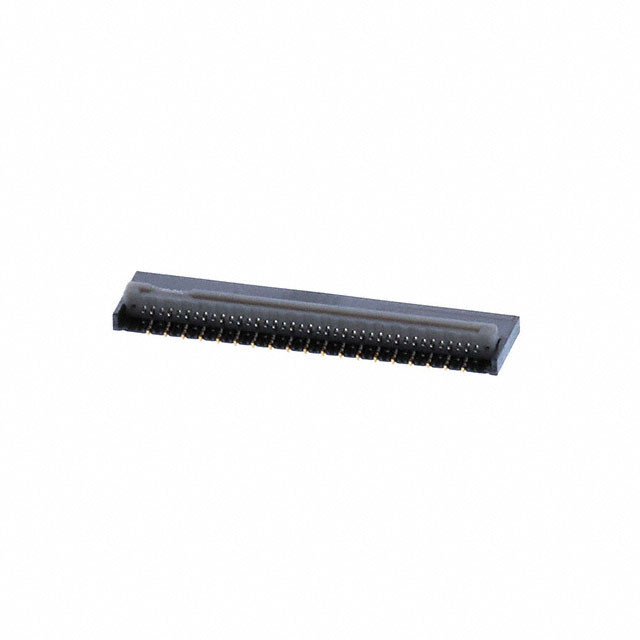

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5047543920 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5047543920 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5047543920 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC 39POS .3MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.612 | $0.555 | $0.521 | $0.499 | $0.476 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.431 | $0.397 | $0.34 | $0.317 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5047543920 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC 39POS .3MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60224 pcs | Data sheet | 5047543920 Drawing504754 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | BackFlip, Easy-On 504754 |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | WM17096CT | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 39 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Black |
| Height Above Board | 0.030" (0.75mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 39 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Gray |
