5041950370

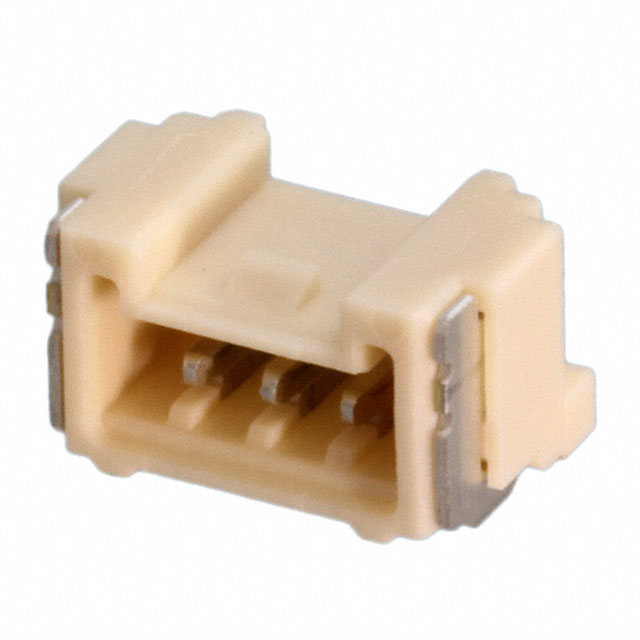

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5041950370 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5041950370 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5041950370 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 1.25MM RA HDR 3CKT SINGLE ROW |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.463 | $0.406 | $0.35 | $0.287 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5041950370 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 1.25MM RA HDR 3CKT SINGLE ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83754 pcs | Data sheet | 5041950370 DrawingMicro-Lock 1.25mm Pitch System |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Micro-Lock 504195 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | WM10584CT | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.163" (4.15mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Surface Mount, Right Angle 3 position 0.049" (1.25mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
