5040501291

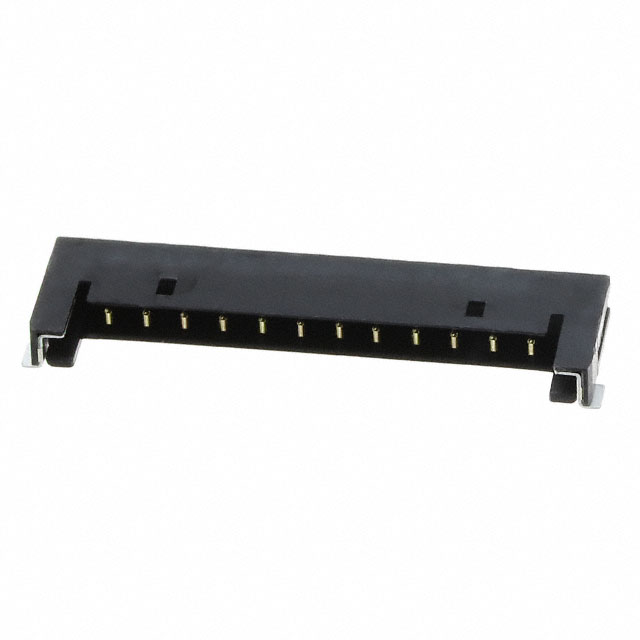

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5040501291 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5040501291 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5040501291 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 15 WB HEADER ASS'Y EMBTP PKG 12P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.744 | $0.676 | $0.635 | $0.607 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.58 | $0.524 | $0.483 | $0.414 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5040501291 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 15 WB HEADER ASS'Y EMBTP PKG 12P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80027 pcs | Data sheet | 504051-002 Appl Spec504050 Drawing504050-001 Pkg Spec504051-001 Appl Spec504051-002 Prod Spec504051-001 Prod Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Pico-Lock 504050 |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | WM16219CT | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.079" (2.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount, Right Angle 12 position 0.059" (1.50mm) |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Lighting, Telecommunications |
