5039084100

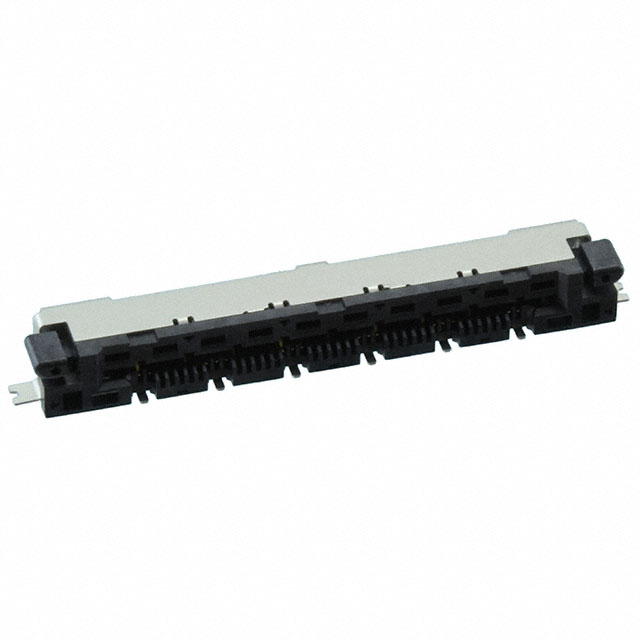

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5039084100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5039084100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5039084100 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC BOTTOM 41POS 0.50MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | 5000 pcs | |
|---|---|---|---|---|---|
| $0.423 | $0.409 | $0.394 | $0.375 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5039084100 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC BOTTOM 41POS 0.50MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94026 pcs | Data sheet | 5039084100 DrawingOne-Touch LVDS FFC Conn Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | 503908 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | WM11898TR | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 41 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Black |
| Height Above Board | 0.148" (3.75mm) | Flat Flex Type | FFC |
| Features | Solder Retention | FFC, FCB Thickness | 0.33mm |
| Detailed Description | 41 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | - |
| Actuator Color | - |
