5037630491

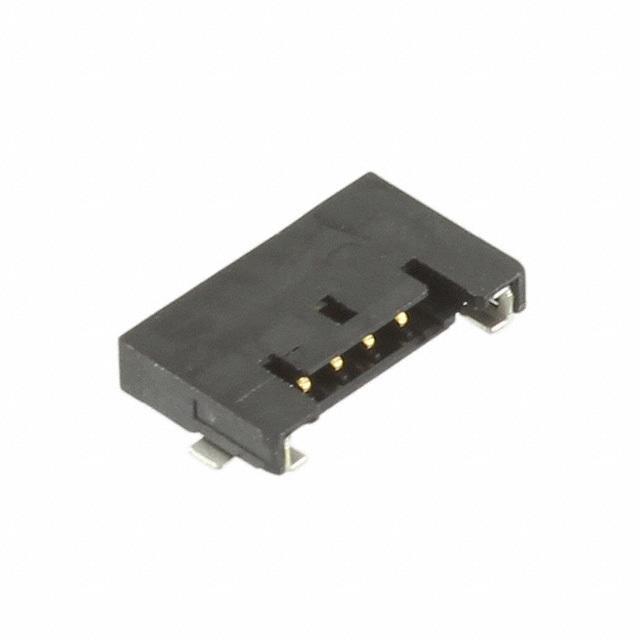

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5037630491 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5037630491 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5037630491 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 1MM R/A 4CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 9000 pcs | 15000 pcs | |
|---|---|---|---|---|---|
| $0.183 | $0.177 | $0.168 | $0.164 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5037630491 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 1MM R/A 4CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 142979 pcs | Data sheet | 1.0mm Pitch W/B Conn Appl Spec1.0 Wire-to-Board Conn Prod Spec5037630491 DrawingPico-Lock™ Connector System |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Pico-Lock 503763 |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 503763-0491 WM10655TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.039" (1.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Lighting, Telecommunications |
