503480-2600
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 503480-2600 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 503480-2600 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 503480-2600 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |

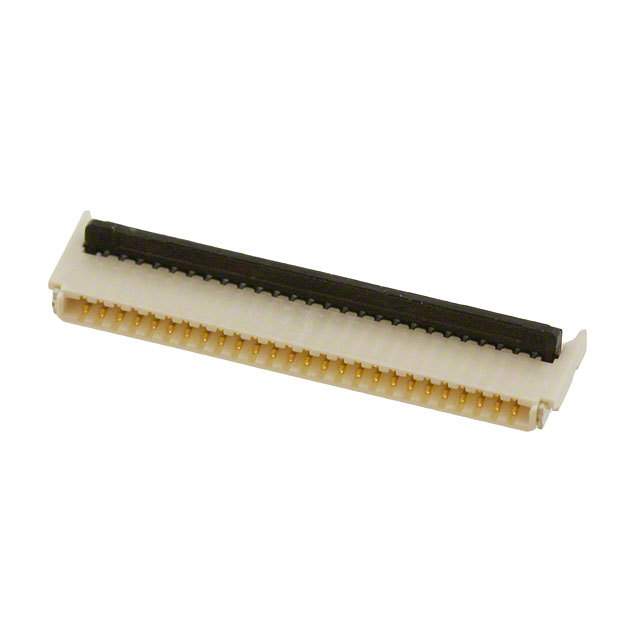

| Description | CONN FFC FPC 26POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 3750 pcs | 5250 pcs | |
|---|---|---|---|---|---|
| $0.507 | $0.433 | $0.418 | $0.397 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 503480-2600 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC FPC 26POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77576 pcs | Data sheet | 503480 Series Pkg Spec503480 Series Prod Spec503480 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | BackFlip, Easy-On 503480 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 503480-2600-TR750 5034802600 WM8989TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 26 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0, UL94 HB | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | White |
| Height Above Board | 0.039" (1.00mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 26 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Straight, Tapered | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Black |
