5033666011

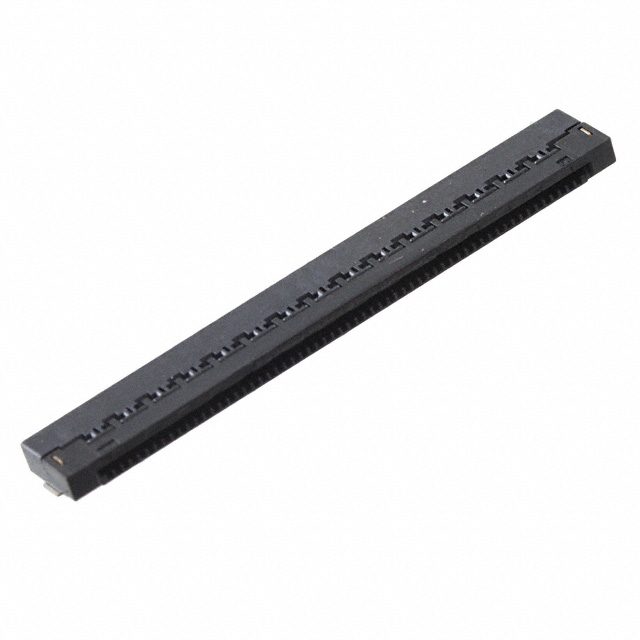

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5033666011 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5033666011 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5033666011 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FFC BOTTOM 60POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | ||
|---|---|---|---|---|---|
| $0.443 | $0.428 | $0.407 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5033666011 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FFC BOTTOM 60POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76046 pcs | Data sheet | 503366-x011 Drawing5033666011503366 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 503366 |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 503366-6011 WM8692TR |
Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 60 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Black |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC, FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 60 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed, Tapered | Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Color | Black |
