5033204160

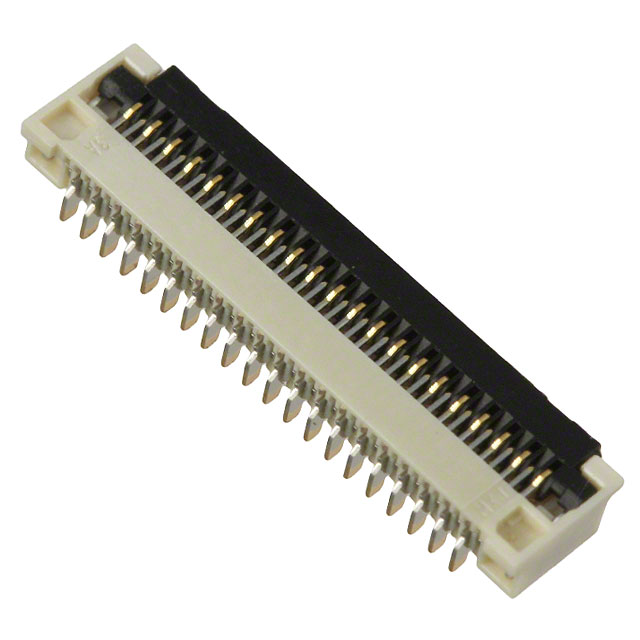

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5033204160 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5033204160 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5033204160 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 41POS 0.25MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 18000 pcs | ||||
|---|---|---|---|---|---|
| $0.484 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5033204160 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 41POS 0.25MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63988 pcs | Data sheet | 503320-4160 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 503320 |
| Pitch | 0.010" (0.25mm) | Packaging | Tape & Reel (TR) |
| Other Names | 503320-4160 WM2265TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 41 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0, UL94 HB | Manufacturer Standard Lead Time | 9 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Beige |
| Height Above Board | - | Flat Flex Type | FPC |
| Features | Solder Retention | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 41 Position FPC Connector Contacts, Bottom 0.010" (0.25mm) Surface Mount, Right Angle | Current Rating | 0.3A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Black |
