5027906091

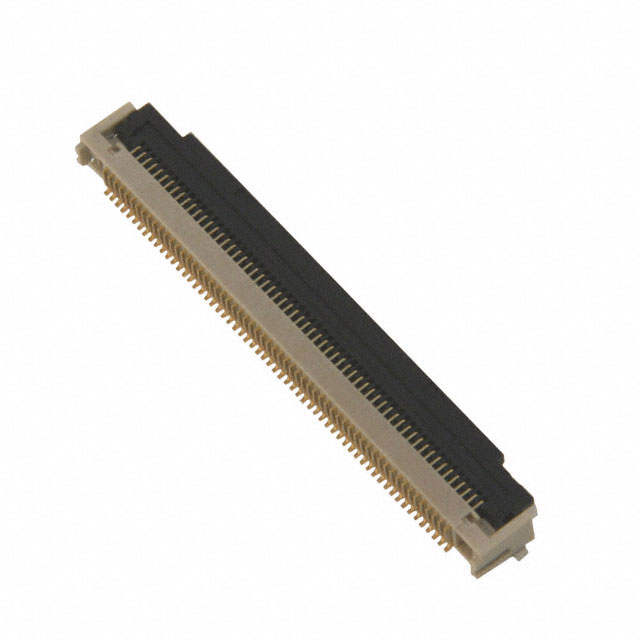

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5027906091 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5027906091 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5027906091 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 60POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.065 | $1.022 | $0.937 | $0.894 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.851 | $0.745 | $0.724 | $0.617 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5027906091 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 60POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48781 pcs | Data sheet | 502790-6091 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 502790 |
| Pitch | 0.020" (0.50mm) | Packaging | Original-Reel® |
| Other Names | WM2268DKR | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 60 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Beige |
| Height Above Board | 0.098" (2.50mm) | Flat Flex Type | FPC |
| Features | Double Contact, Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 60 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 2.00µin (0.051µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Color | Black |
