5025851170

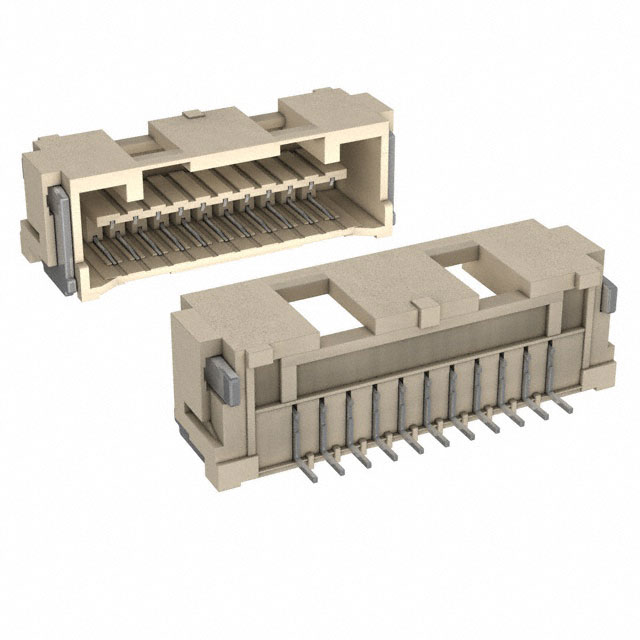

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5025851170 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5025851170 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5025851170 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN SGL R/A RCPT 11CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.141 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5025851170 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN SGL R/A RCPT 11CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 140711 pcs | Data sheet | 5025851170 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | CLIK-Mate 502585 | Row Spacing - Mating | - |
| Pitch - Mating | 0.059" (1.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 502585-1170 | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 11 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Resin |
| Insulation Height | 0.250" (6.35mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | 11 Position Receptacle Connector 0.059" (1.50mm) Surface Mount, Right Angle Tin |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
