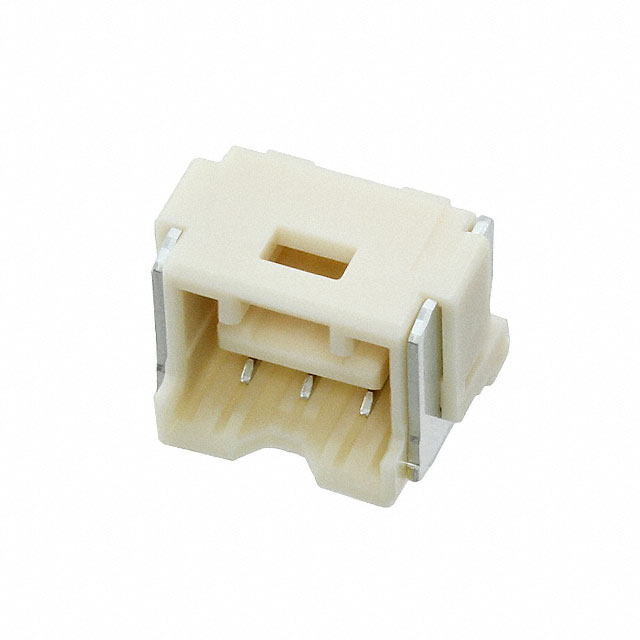

502443-0370
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 502443-0370 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 502443-0370 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 502443-0370 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 2.0 W/B SGL S/TRECASSY3CKTEMBSTP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 650 pcs | 1300 pcs | 1950 pcs | 3250 pcs | |
|---|---|---|---|---|---|
| $0.123 | $0.102 | $0.099 | $0.093 | ||
| 6500 pcs | 16250 pcs | 32500 pcs | |||
| $0.089 | $0.082 | $0.08 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 502443-0370 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 2.0 W/B SGL S/TRECASSY3CKTEMBSTP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 289708 pcs | Data sheet | 5024430370 DrawingCLIK-Mate™ Datasheet2.0mm PITCH W/B CONN. SINGLE Series User Manual2.0mm PITCH W/B CONN. SINGLE Series Application Sp |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | CLIK-Mate 502443 | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 5024430370 WM15809TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Resin | Insulation Height | 0.293" (7.44mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Latch Holder |
| Detailed Description | 3 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Tin | Current Rating | - |
| Contact Type | Forked | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
