5023820672

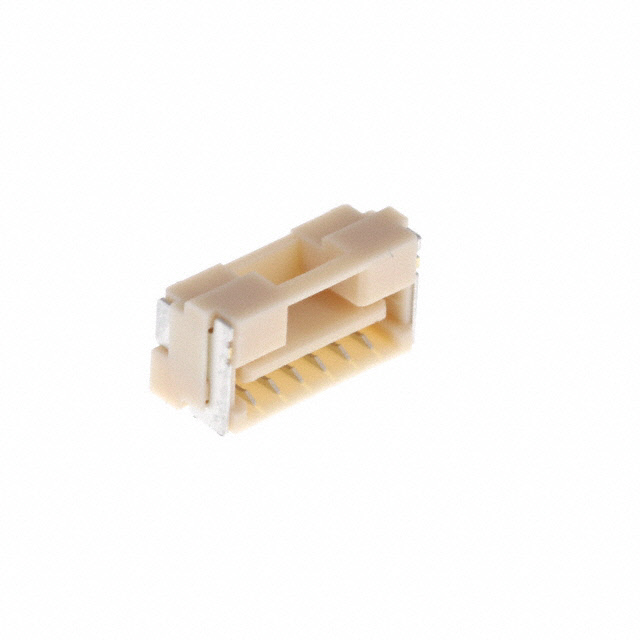

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5023820672 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5023820672 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5023820672 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN 1.25 W/B ST RCPT 6CKT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1400 pcs | 2800 pcs | 7000 pcs | 9800 pcs | 14000 pcs |
|---|---|---|---|---|---|
| $0.248 | $0.225 | $0.217 | $0.206 | $0.202 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 5023820672 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN 1.25 W/B ST RCPT 6CKT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 100948 pcs | Data sheet | 5023820672 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | CLIK-Mate 502382 | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Tape & Reel (TR) |
| Other Names | 502382-0672 5023820672-ND WM12350TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Resin |
| Insulation Height | 0.173" (4.40mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | 6 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Tin |
| Current Rating | 1A | Contact Type | Forked |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
