5019313070

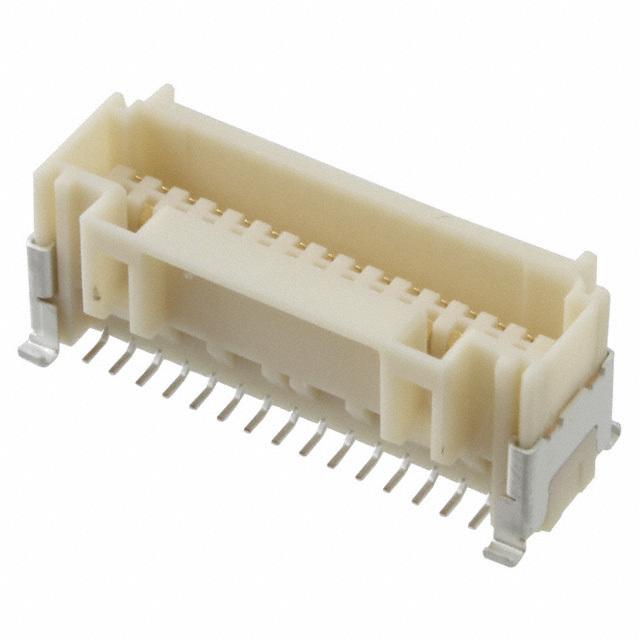

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5019313070 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5019313070 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5019313070 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | 1.25MM WTB RCPT DUAL VERT 30POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 550 pcs | 1100 pcs | 1650 pcs | 2750 pcs | 5500 pcs |
|---|---|---|---|---|---|
| $0.682 | $0.582 | $0.561 | $0.541 | $0.521 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 5019313070 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | 1.25MM WTB RCPT DUAL VERT 30POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66010 pcs | Data sheet | 5019313070 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Duo-Clasp 501931 | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Tape & Reel (TR) |
| Other Names | 501931-3070 WM4614 WM4614-ND WM4614TR |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.346" (8.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | 30 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Forked |
| Contact Shape | - | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
