5016285191

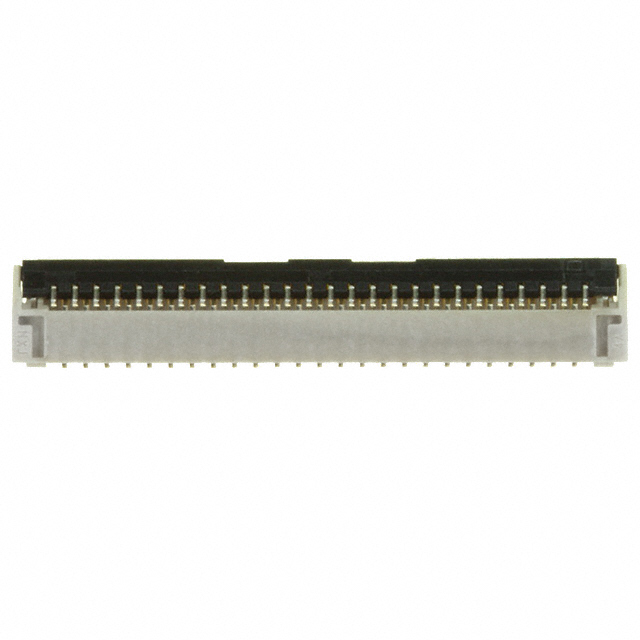

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5016285191 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5016285191 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5016285191 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN FPC BOTTOM 51POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.123 | $2.039 | $1.869 | $1.784 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.699 | $1.487 | $1.444 | $1.232 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5016285191 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN FPC BOTTOM 51POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24503 pcs | Data sheet | 501628-5191 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | Easy-On 501628 |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | WM2189 WM2189-ND WM2189CT |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 51 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Housing Color | - | Height Above Board | 0.035" (0.88mm) |
| Flat Flex Type | FPC | Features | - |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 51 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Copper Alloy |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Tabbed |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | Actuator Color | - |
