5015712007
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5015712007 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5015712007 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote

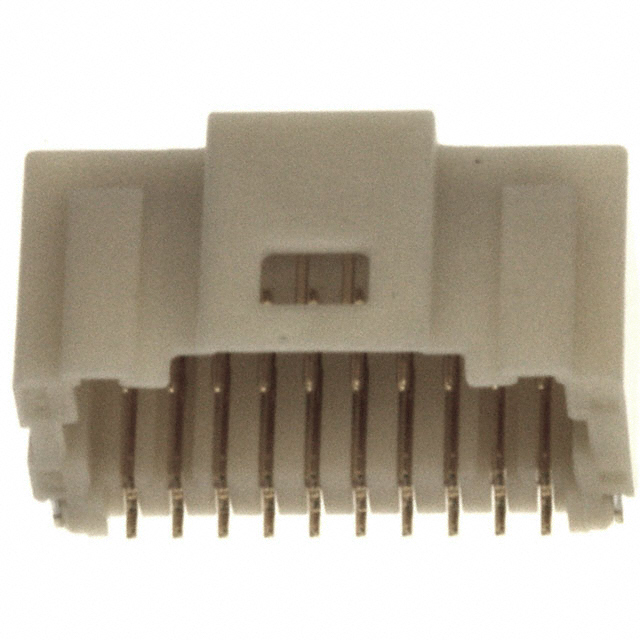

| Part Number | 5015712007 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 1MM 20POS R/A SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | 1600 pcs | 2400 pcs | 5600 pcs | 8000 pcs |
|---|---|---|---|---|---|
| $0.339 | $0.289 | $0.279 | $0.265 | $0.259 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 5015712007 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 1MM 20POS R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74902 pcs | Data sheet | Pico-Clasp™ Connector Brochure501571-2007 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Pico-Clasp 501571 |
| Row Spacing - Mating | 0.105" (2.66mm) | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 501571-2007 WM7911TR |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.325" (8.25mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount, Right Angle 20 position 0.039" (1.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose |
